Yalelift ITP
Hand Chain Hoist Model Yalelift ITP / ITG Capacities 500 - 5,000Kg
The combination of the Yalelift 360 with a low headroom push or geared trolley provides even more flexibility in the application of the Yalelift 360.
Options
- Spark resistance
- Corrosion resistant finishes
- Overload protection
- Chain container
Features
- The manual trolleys are adjustable to fit a wide
range of beam profiles
- The trolley wheels are designed for a max. beam
profile incline of 14 % (DIN 1025 - part 1),
excellent rolling features are guaranteed by pre-lubricated,
encapsulated ball bearings.
- Anti-tilt and anti-drop devices are standard.
Yalelift ITP and ITG Hand Chain Hoists With Integrated Push or Geared Trolley
The combination of the Yalelift 360 with an integrated low headroom manual trolley provides even more flexibility in the application of the Yalelift 360. A wide range of capacities and beam flange widths coupled with low headroom provide unrivalled flexibility.
- All units of this series up to a capacity of 3.000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.
- The manual trolleys are adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB). Depending on the beam flange width an adjustment up to 300 mm can be made easily.
- The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by pre lubricated, encapsulated ball bearings.
- Anti-tilt and anti-drop devices are standard.
- A subsequent conversion of a Yalelift 360 into a Yalelift IT with integrated trolley is easily possible at any time.
Yalelift ITP / ITG Technical Data
Capacity in kg/ |
Number chain falls |
Beam range |
Beam flange width b
mm |
Beam flange thickness t max.
mm |
Min.radius curve |
Net weight in kg for 3 m lift |
|
with locking device |
-P |
-G |
-P |
-G |
500 |
1 |
A |
50 - 180 |
19 |
0,90 |
20 |
24 |
26 |
31 |
500 |
1 |
B |
180 - 300 |
19 |
0,90 |
21 |
25 |
27 |
32 |
1000 |
1 |
A |
50 - 180 |
19 |
0,90 |
27 |
32 |
35 |
40 |
1000 |
1 |
B |
180 - 300 |
19 |
0,90 |
29 |
33 |
37 |
41 |
2000 |
1 |
A |
58 - 180 |
19 |
1,15 |
44 |
49 |
52 |
57 |
2000 |
1 |
B |
180 - 300 |
19 |
1,15 |
46 |
50 |
54 |
58 |
3000 |
1 |
A |
74 - 180 |
27 |
1,40 |
77 |
82 |
86 |
91 |
3000 |
1 |
B |
180 - 300 |
27 |
1,40 |
79 |
84 |
88 |
93 |
5000 |
2 |
A |
98 - 180 |
27 |
1,80 |
125 |
130 |
135 |
140 |
5000 |
2 |
B |
180 - 300 |
27 |
1,80 |
129 |
134 |
139 |
144 |
P = with pushed trolley G = with geared trolley

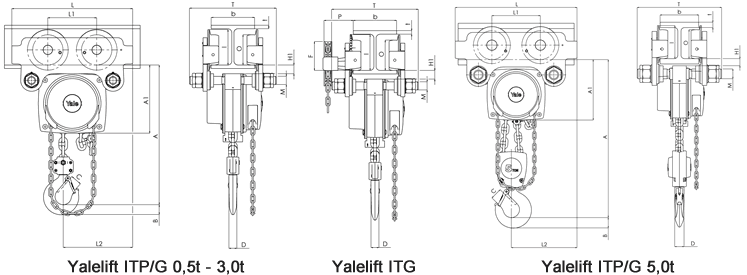

Yalelift ITP / ITG Dimensions
Dimensions in mm |
Yalelift IT |
Yalelift IT |
Yalelift IT |
Yalelift IT |
Yalelift IT |
Yalelift LH |
Yalelift LH |
Yalelift LH |
Yalelift LH |
Yalelift LH |
|
500 |
1000 |
2000 |
3000 |
5000 |
500 |
1000 |
2000 |
3000 |
5000 |
A min. |
245 |
272 |
323 |
382 |
550 |
188 |
211 |
264 |
316 |
425 |
A1 |
158 |
178 |
205,5 |
252 |
260,5 |
223 |
250 |
289 |
346 |
345 |
A2 |
– |
– |
– |
– |
– |
381 |
427 |
511 |
614 |
612 |
B |
17 |
22 |
30 |
38 |
45 |
17 |
22 |
30 |
38 |
45 |
C |
24 |
29 |
35 |
40 |
47 |
24 |
29 |
35 |
40 |
47 |
D |
14 |
19 |
22 |
30 |
37 |
14 |
19 |
22 |
30 |
37 |
F (geared) |
92 |
92 |
91 |
107 |
149,5 |
92 |
92 |
91 |
107 |
150 |
H1 |
24,5 |
24 |
23,5 |
32 |
30,5 |
24 |
24 |
24 |
32 |
31 |
I (pushed) |
71,5 |
71,5 |
95,5 |
131 |
142,5 |
72 |
72 |
96 |
131 |
143 |
I (geared) |
76,5 |
76,5 |
98 |
132,5 |
148,5 |
77 |
77 |
98 |
133 |
149 |
L |
270 |
310 |
360 |
445 |
525 |
270 |
310 |
360 |
445 |
525 |
L1 |
130 |
130 |
150 |
180 |
209 |
130 |
130 |
150 |
180 |
209 |
L2 |
159 |
175 |
207 |
256 |
283 |
444 |
488 |
582 |
690 |
720 |
L3 |
– |
– |
– |
– |
– |
124 |
135 |
172 |
203 |
175 |
L4 |
– |
– |
– |
– |
– |
184 |
201 |
230 |
265 |
283 |
M |
M 18 |
M 22 |
M 27 |
M 30 |
M 42 |
M 18 |
M 22 |
M 27 |
M 30 |
M 42 |
O |
60 |
60 |
80 |
112 |
125 |
60 |
60 |
80 |
112 |
125 |
P (geared) |
108 |
110 |
112 |
112 |
117 |
108 |
110 |
112 |
112 |
117 |
T (Range A) |
280 |
290 |
305 |
320 |
364 |
280 |
290 |
305 |
320 |
364 |
T (Range B) |
400 |
410 |
425 |
440 |
484 |
400 |
410 |
425 |
440 |
484 |
Hand chain hoists for lifting, lowering, tensioning and pulling
1877 Linus Yale produced the first spur geared hand chain hoist with incorporated Weston screw and- disc type load break. This principle is still used in nearly all manual hoists.
Our product range starting from our top model Yalelift 360 to our well established VS and its successor VSplus offers you the optimal solution for your application problem!
All parts of the load brake are made of high quality materials and are protected against corrosion. Yale exclusively uses asbestos free friction discs in all their hoists. The surface protected zinc plated alloy steel chains fulfil all the requirements of national and international standards and regulations. In accordance with safety regulations, the chain stops are designed to withstand double the rated capacity to ensure the chain does not unintentionally run free.
The drop forged load and suspension hooks that yield under overload instead of breaking, are made of high tensile steel and are standard for all Yale hoists. The hooks are fitted with robust safety latches and rotate 360°.
Every Yale ratchet lever hoist is factory tested with overload. The units are supplied with a test certificate showing the serial-No. Operating instructions which contain an EC declaration of conformity are also attached to each unit.
