SectionLift Product Range
We offer an extensive range of equipment for sale from 3 tonnes to 3000. The list below shows our hire capability. Other weights and spans are achievable, please contact our technical team for details. All our systems are available for national and international delivery.
SectionLift 6
- Minimum Beam Length: 500mm
- Maximum Beam Length: 4 metres
- Max. Load Capacity: 8 tonnes at 2 metres
- 6 tonnes capacity at 3 metres span
SectionLift 10
- Minimum Beam Length: 500mm
- Maximum Beam Length: 10 metres
- Max. Load Capacity: 16 tonnes at 5.5 metres
- 10 tonnes capacity at 7 metres span
SectionLift 20
- Minimum Beam Length: 500mm
- Maximum Beam Length: 12 metres
- Max. Load Capacity: 24 tonnes at 5.5 metres
- 20 tonnes capacity at 6 metres span
SectionLift 50
- Minimum Beam Length: 1000mm
- Maximum Beam Length: 16 metres
- Max. Load Capacity: 50 tonnes at 6 metres
- 40 tonnes capacity at 8 metres span
SectionLift 80
- Minimum Beam Length: 1000mm
- Maximum Beam Length: 20 metres
- Max. Load Capacity: 80 tonnes at 11 metres
- 50 tonnes capacity at 15 metres span
SectionLift 110
- Minimum Beam Length: 1000mm
- Maximum Beam Length: 22 metres
- Max. Load Capacity: 170 tonnes at 8.5 metres
- 110 tonnes capacity at 12 metres span
SectionLift 240
- Minimum Beam Length: 1500mm
- Maximum Beam Length: 26 metres
- Max. Load Capacity: 240 tonnes at 10 metres
- 180 tonnes capacity at 13 metres span
SectionLift 420
- Minimum Beam Length: 1500mm
- Maximum Beam Length: 32 metres
- Max. Load Capacity: 400 tonnes at 3.5 metres
- 240 tonnes capacity at 10 metres span

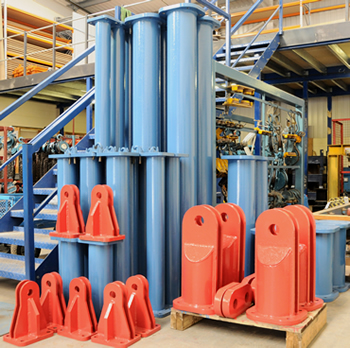

Selection of SectionLift Hire Equipment
