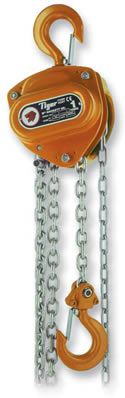

Tiger Hand Chain Hoist

Tiger Hand Chain Blocks Capacities 500 - 10,000 kg

Tiger Manual Chain Block also known as the Tiger Hand Chain Hoist is a top quality chain hoist with a 5:1 safety factor and designed as practical solution to a variety of lifting operation requirements.

Tiger Hand Chain Hoist

Price From £POA

Options

  • Integrated or "hook on" trolleys available in either push and geared travel options.
  • Trolleys available to suit beam flange widths from 62mm to 194mm

Features

  • Tiger Manual Chain Hoist - BSEN 13157:2004
  • Compact and Lightweight
  • Every chain hoist is proof load tested to 1.5 times it's rated capacity
  • Latch swivel load hooks
  • Grade 80/100 high quality alloy load chain.

Tiger Hand Chain Hoists

Tiger manual chain hoist also known as the Tiger hand chain block is a top quality with a 5:1 safety factor and designed as practical solution to a variety of lifting operation requirements. It is used extensively in the offshore, mining and petrochemical industries and has a proven track record for reliability and ease of use. Tiger Chain Blocks are designed to be fitted quickly and easy to a suitable anchor point using its hook suspension whilst ensuring a safe method of lifting is maintained. Spare parts are both readily available and reasonably priced allowing for extended life cycles of correctly maintained hoists.

Tiger Hoist Technical Data

S.W.L. Dimensions mm No. of Chain Falls Mass Kg 3 mtr
A B C F F1
500Kg 130 156 305 30 26 1 10.8
1.0t 150 156 340 33 28 1 12
1.5t 180 166 385 38 34 1 16.3
2.0t 180 166 397 43 38 1 16.7
2.0t 200 175 420 43 38 1 21
3.0t 210 166 465 43 38 2 25
3.0t s/fall 255 191.5 550 43 38 1 50
5.0t 330 175 575 57 52 3 39
10.0t 412.5 191.5 660 60 54 3 65

Tiger Push Travel Trolley

Tiger push trolley Part Code SWL (tonne) Flange mm
044.050 0.5 62 - 128
044.100 1.0 62 - 128
044.200 2.0 88 - 154
044.300 3.0 87 - 153
044.500 5.0 106 - 194
014/1000 10.0 136 - 305

Tiger Geared Travel Trolley

Tiger Geared Travel Trolley Part Code SWL (tonne) Flange mm
055.100 1.0 62 - 128
055.200 2.0 88 - 154
055.300 3.0 87 - 153
055.500 5.0 106 - 194
055.1000 10.0 125 - 310
005/2003 20.0 100 - 300
